Geometry

The geometry is composed of the following elements:

  • list of abstract figures (boxes, cylinders, spheres, etc.). The figures are defined by their position and size and has no material assigned to them.
  • list of zones. The zones are defined by the boolean operations on the abstract figures and have assigned material.

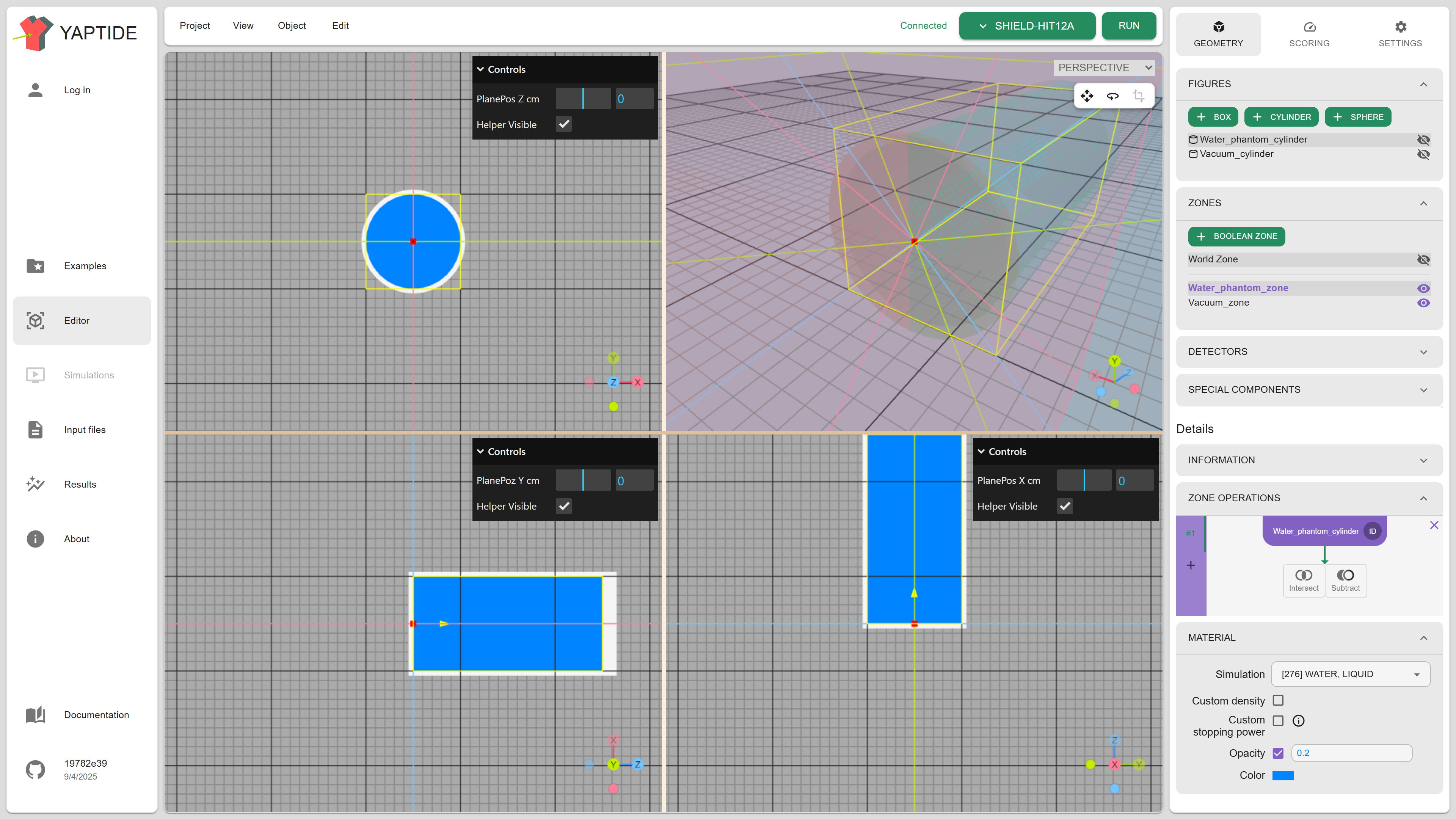

An example geometry is shown below:

Alt text

In following sections we will go through generation of simple geometry. It will consist of:

  • water phantom box
  • lead collimator with 2cm radius hole and 1cm thickness
  • world filled with air

Creating new project

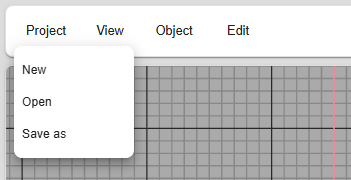

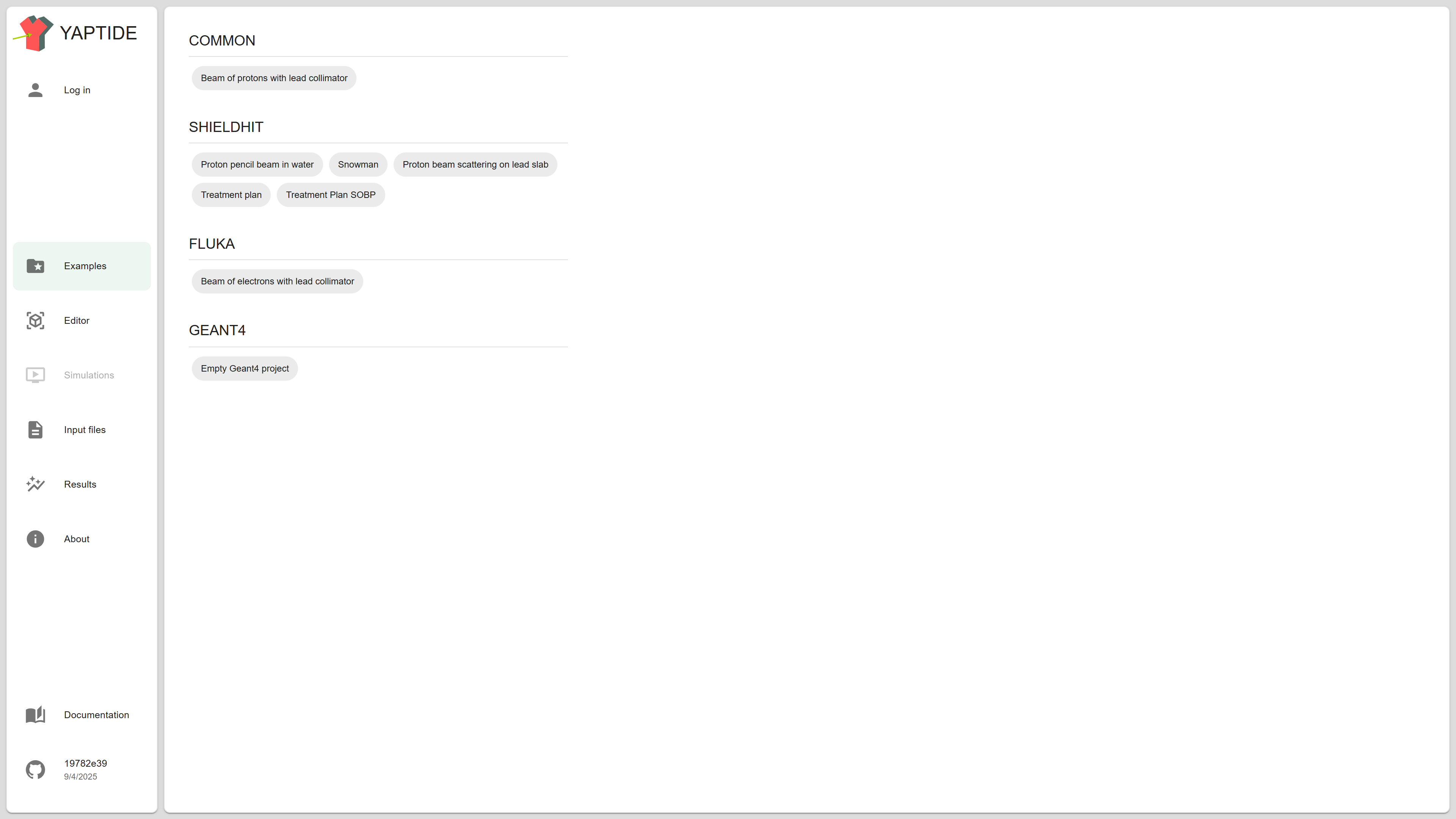

Let us go through the process of defining simple simulation geometry. The starting point would be a modification of existing project or creation of a new one. Let us start with a new project as this will be good opportunity to introduce most of the Yaptide features. It can be done using "New" button in the upper left part of the Editor window (select Editor in left menu).

Alt text

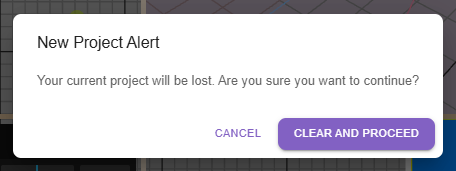

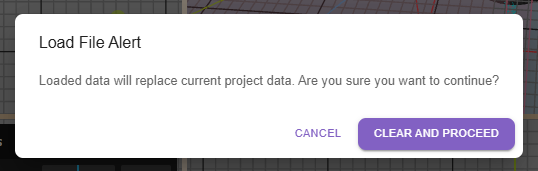

You will be prompted that this operation will overwrite the current project. Save your previous work if you want to keep it.

Alt text

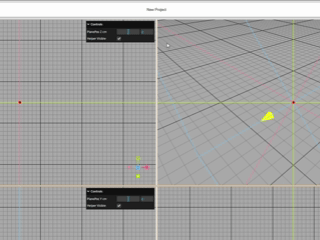

New project can get a name and description. The name can be adjusted by double click the title panel in the Editor window.

Alt text

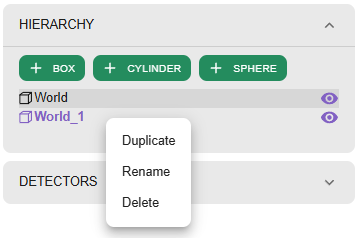

another way is the right click on the project name in the title menu and choosing "Rename" option.

Alt text

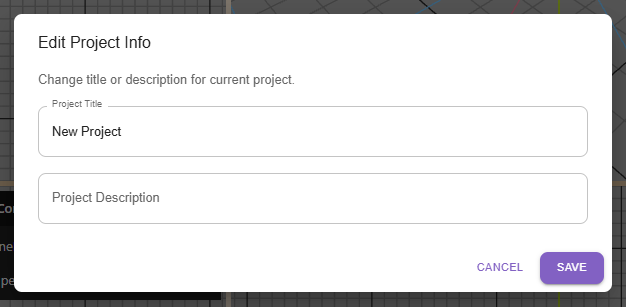

This way the description can be adjusted as well:

Alt text

Adding figures

Main box

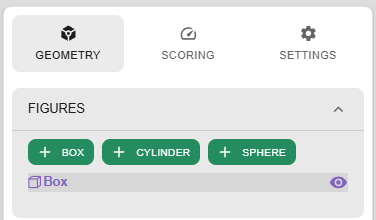

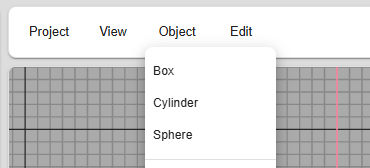

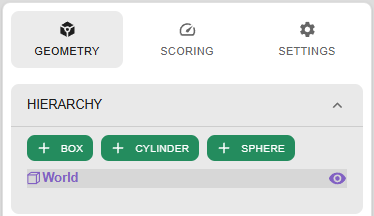

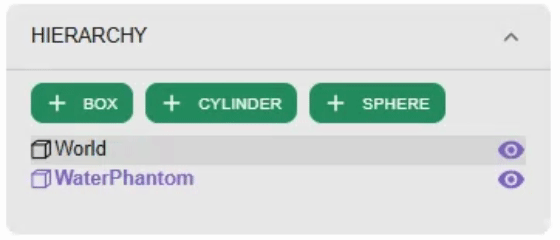

Lets start with adding a box filled with air with dimensions large enough to fit the other object we would like to simulate. There are two ways to add a box, either from upper left menu in the Editor tab or by going to Geometry tab in right menu and expanding "Figures" block. Both entries are in the "Editor" window.

Alt text Alt text

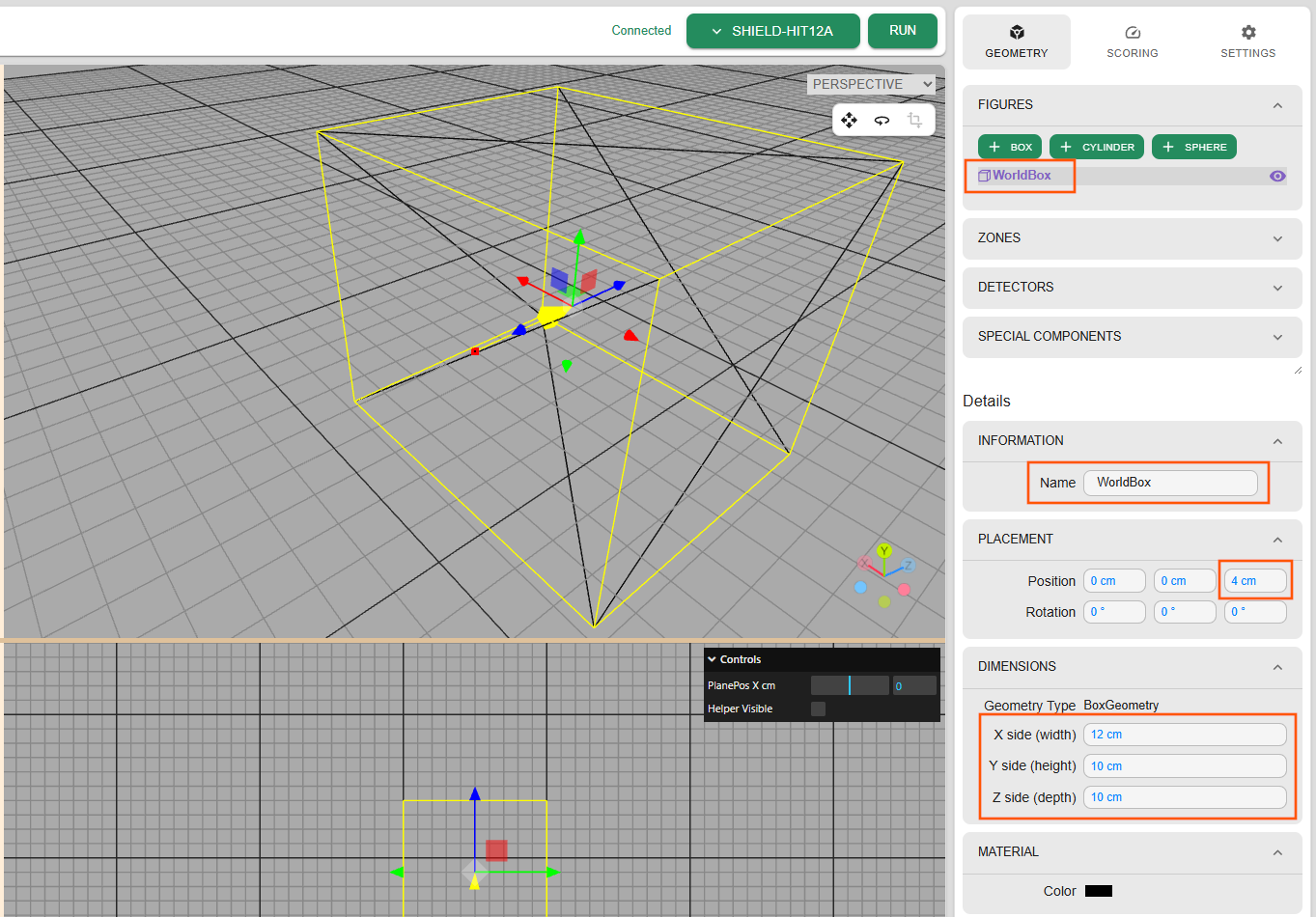

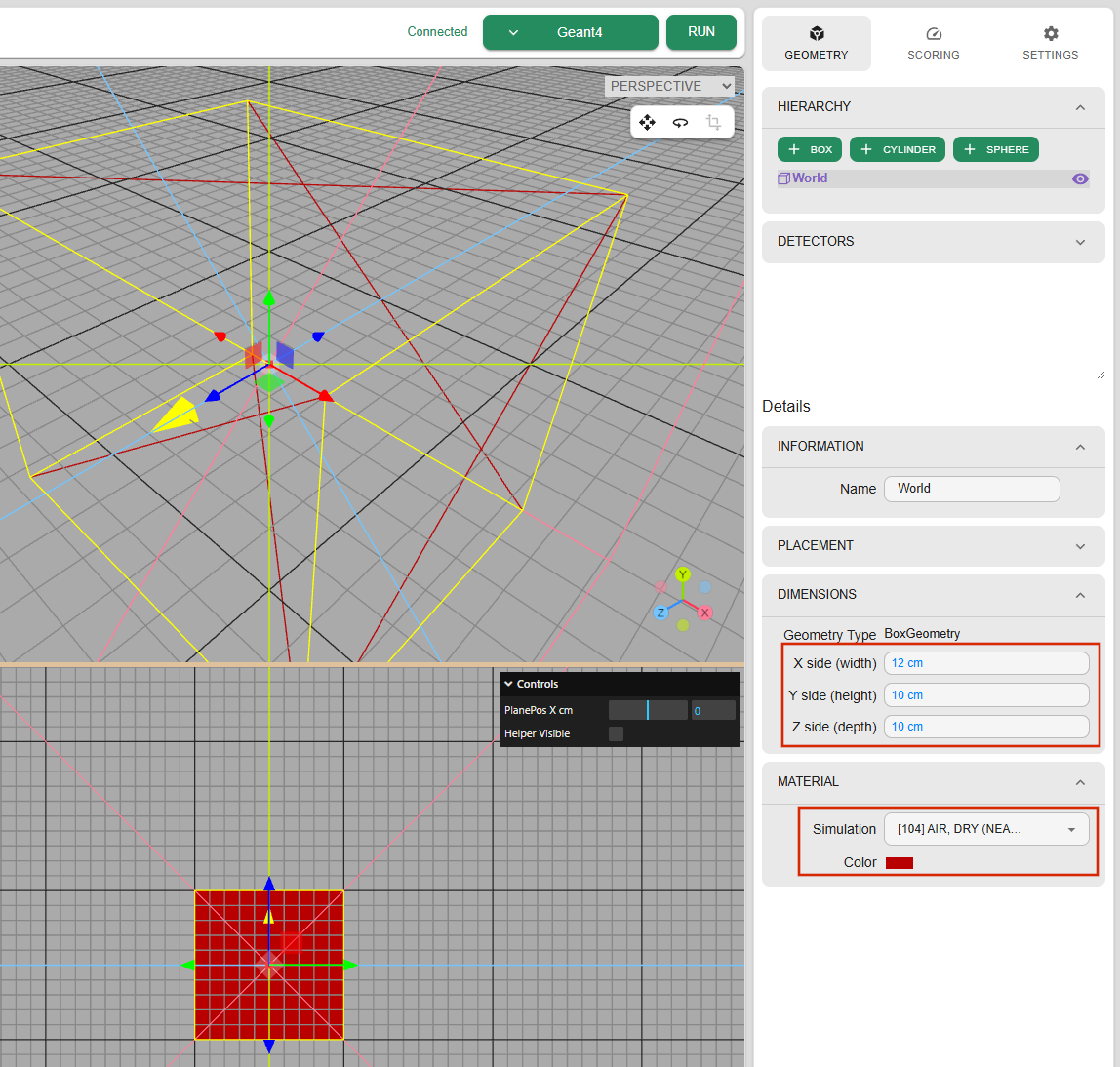

Lets create a box spanning from -2 to 10 in z direction and from -5 to 5 in x and y direction. In the yaptide we need to provide box center (named "Position") and its dimensions (named "X/Y/Z side"). In our case the position will be (4,0,0) and dimensions 12cm x 10cm x 10cm. Note that basic dimensions units in yaptide are centimeters. Leta also assign a meaningful name to the created figure.

Alt text

The figure is created and its cross-sections in YX, XZ and ZY planes visible in the 3 windows in the center of the screen. The 3-D projection is visible as well.

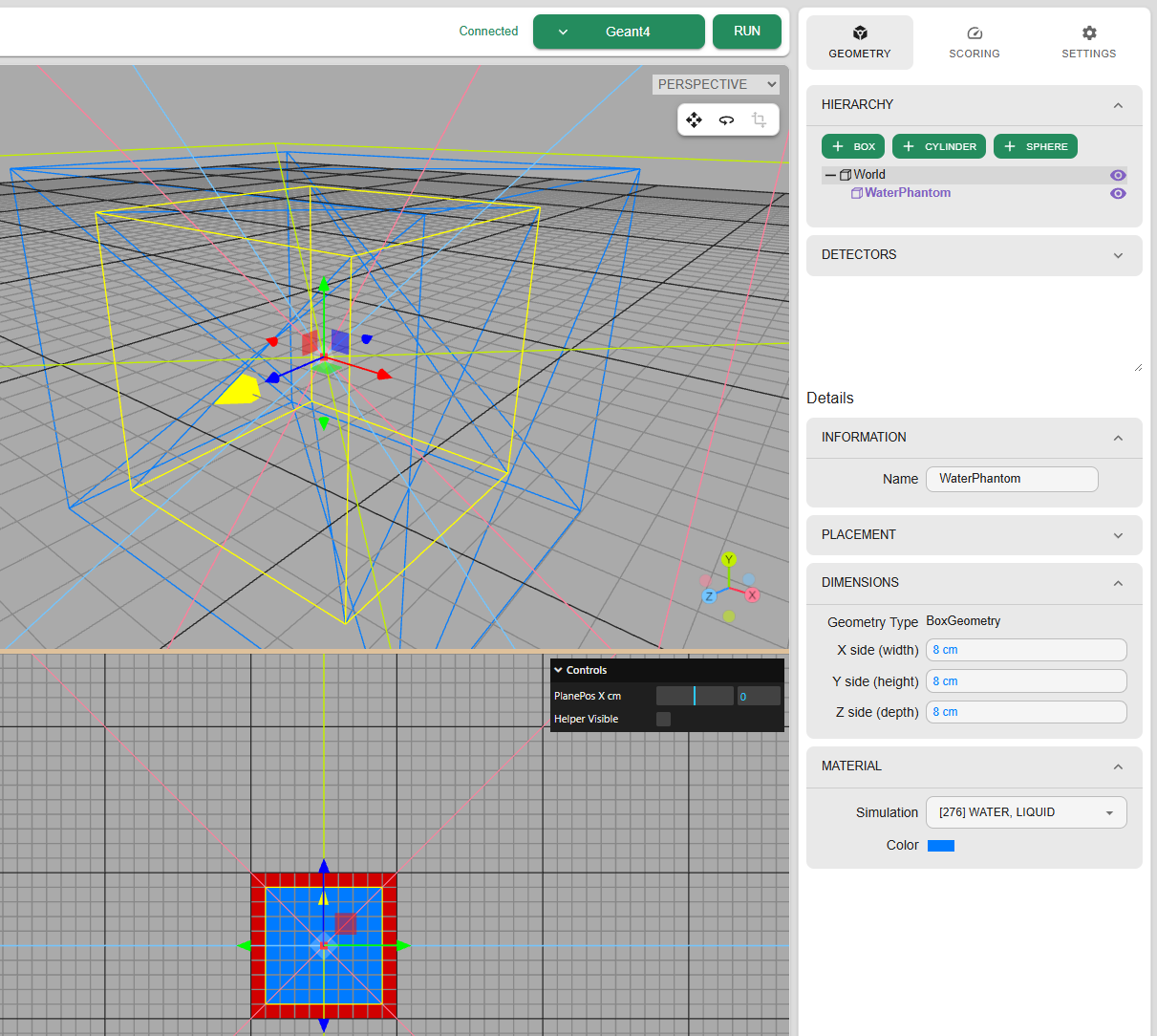

Large phantom

Then lets proceed with adding a box which will represend a water phantom in which the simulated beam will stop. This box will be placed inside the world box and will be 8cm x 8cm x 8cm in size. We are going to place it at (4,0,0) position as well. The dimensions are given in such way that the water phantom is fully contained in the world box.

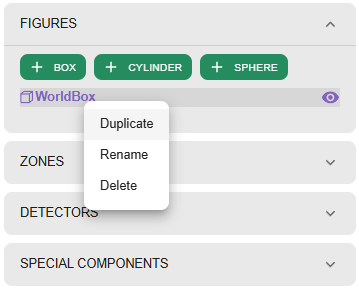

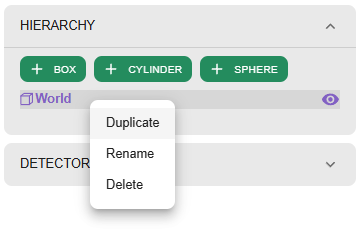

This time we will use a different technique of adding a figure: we will duplicate the WorldBox and modify the dimensions. Such action can be achieved by right click on the WorldBox entry visible in the "Figures" section of the Geometry tab in right menu.

Alt text

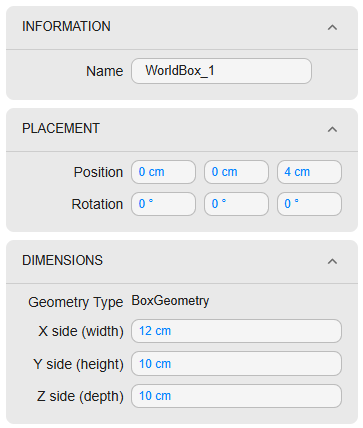

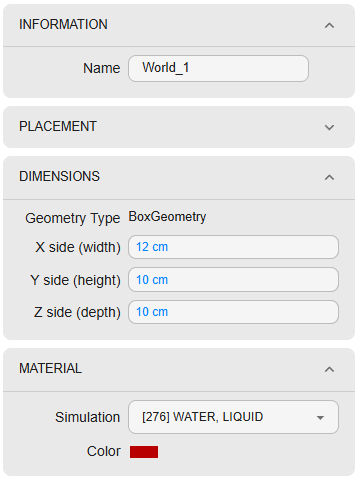

The newly created figure will inherit the name from the duplicated object. An _1 suffix will be added to the name to keep all the names unique. All other properties (like position and dimensions) will be copied as well.

Alt text

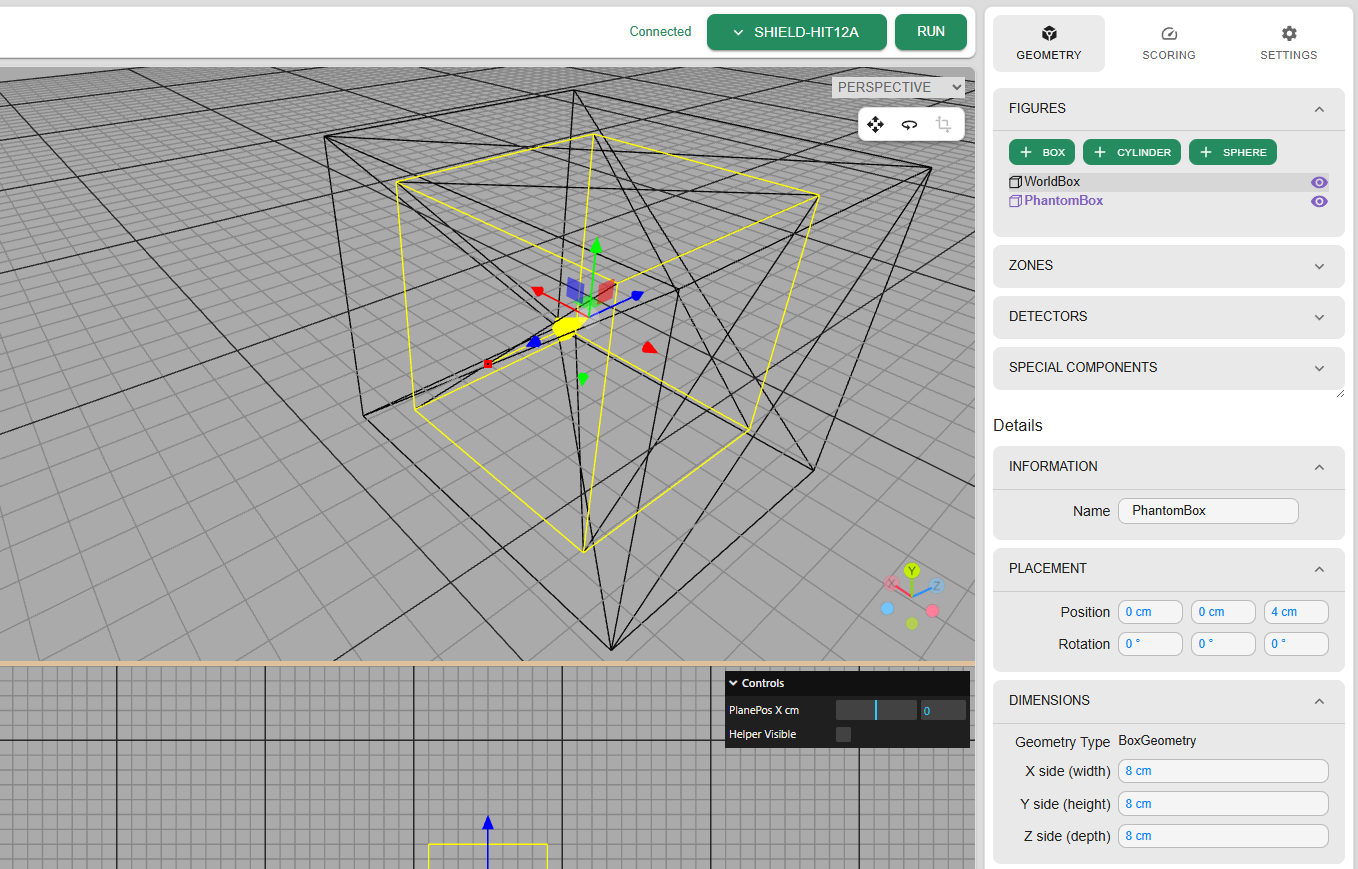

Now lets adjust the dimensions of the newly created figure to 8cm x 8cm x 8cm, as the position can stay the same. Also the name needs an update to PhantomBox. Note that the two figures are visible in the 3-D projection window, while only current one is visible in the cross-sections.

Alt text

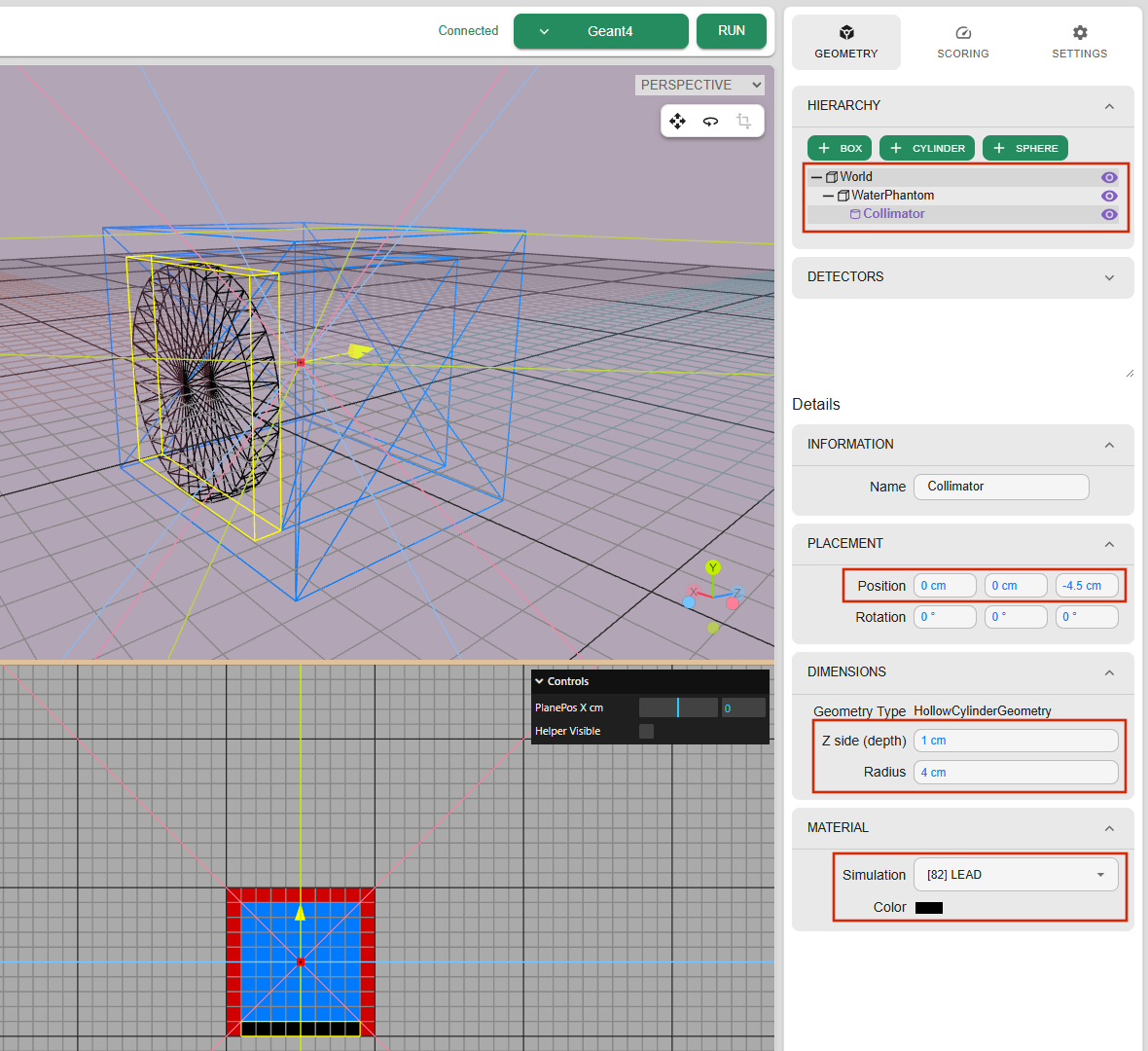

Collimator

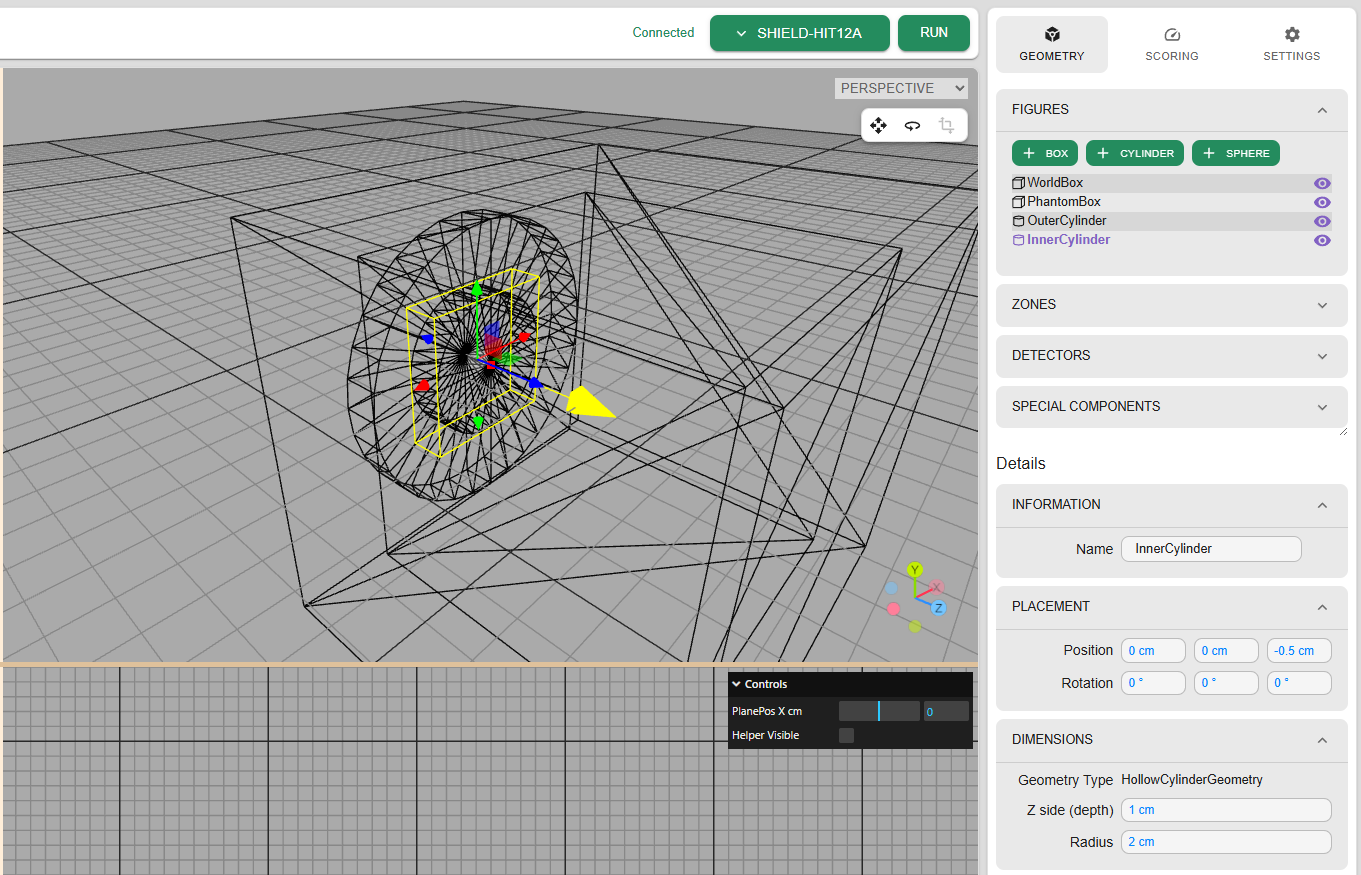

Finally lets add two cylinders represending outer envelope and inner hole inside the collimator. The cylinders have thickness of 1cm and are radius of 4 and 2 cm appropriately. Both are centered around (0,0,0) point. You can use drag operation by clicking and dragging on the 3-D projection view. This would help to adjust the view, so the collimator is visible.

Alt text

Adding new zone

With all the basic figures defined we can use then to construct the zones which will be used in the simulation. Here we follow the naming of SHIELD-HIT12A, as Fluka calls the zones "regions".

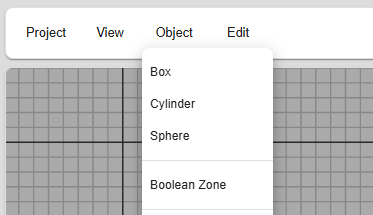

Lets start with adding the zone which will represent the large box willed with air. This can be done in a similar way as adding the figures, either from upper left menu in the Editor tab or by going to Geometry tab in right menu and expanding "Zones" block. Both entries are in the "Editor" window. Note that by defaul an automatically created "World Zone" is visible.

Alt text Alt text

Main zone

We start by defining first zone from the main box, assigning it the material: Air.

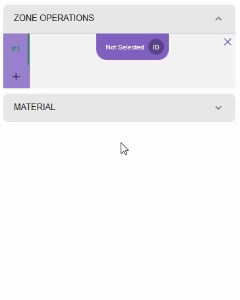

After creating new Zone we should see a following entry in the right-menu. New entry appears as well in the list of Zones. The newly created zone named "Boolean Zone" has liquid water attached as a meterial by default. Note that in "Zone Operations" we see "Not selected" message. This means that the zone has no figures attached.

Alt text

Lets attach the correct figure to the zone by clicking on the "Not selected" message and choosing the "WorldBox" figure.

Alt text

Then lets rename the zone to "MainZone" and assign the material to it. The material can be selected from the list of materials in the "Simulation" menu ("Material" area). After selecting the list of materials you can type few letters ("ai" in our case) and list of materials containing the typed letters will be shown.

Alt text

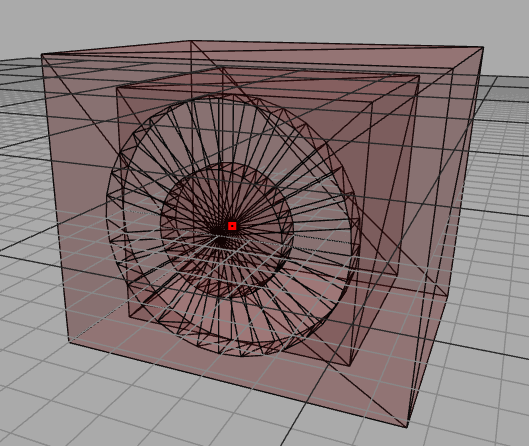

To improve visual properties we adjust the color and set opacity to 0.05: Alt text

Water phantom zone

Then we proceed with adding the water phantom zone. Lets add new zone and assign the "PhantomBox" as the figure. We rename the zone to "PhantomZone". There is no need to assign the material as we stay with defaul "Liquid Water" material.

Alt text

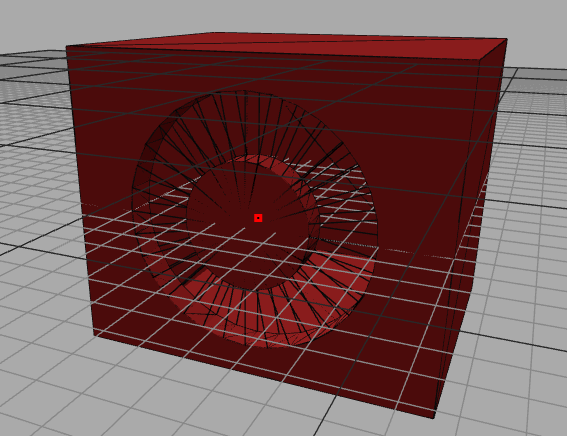

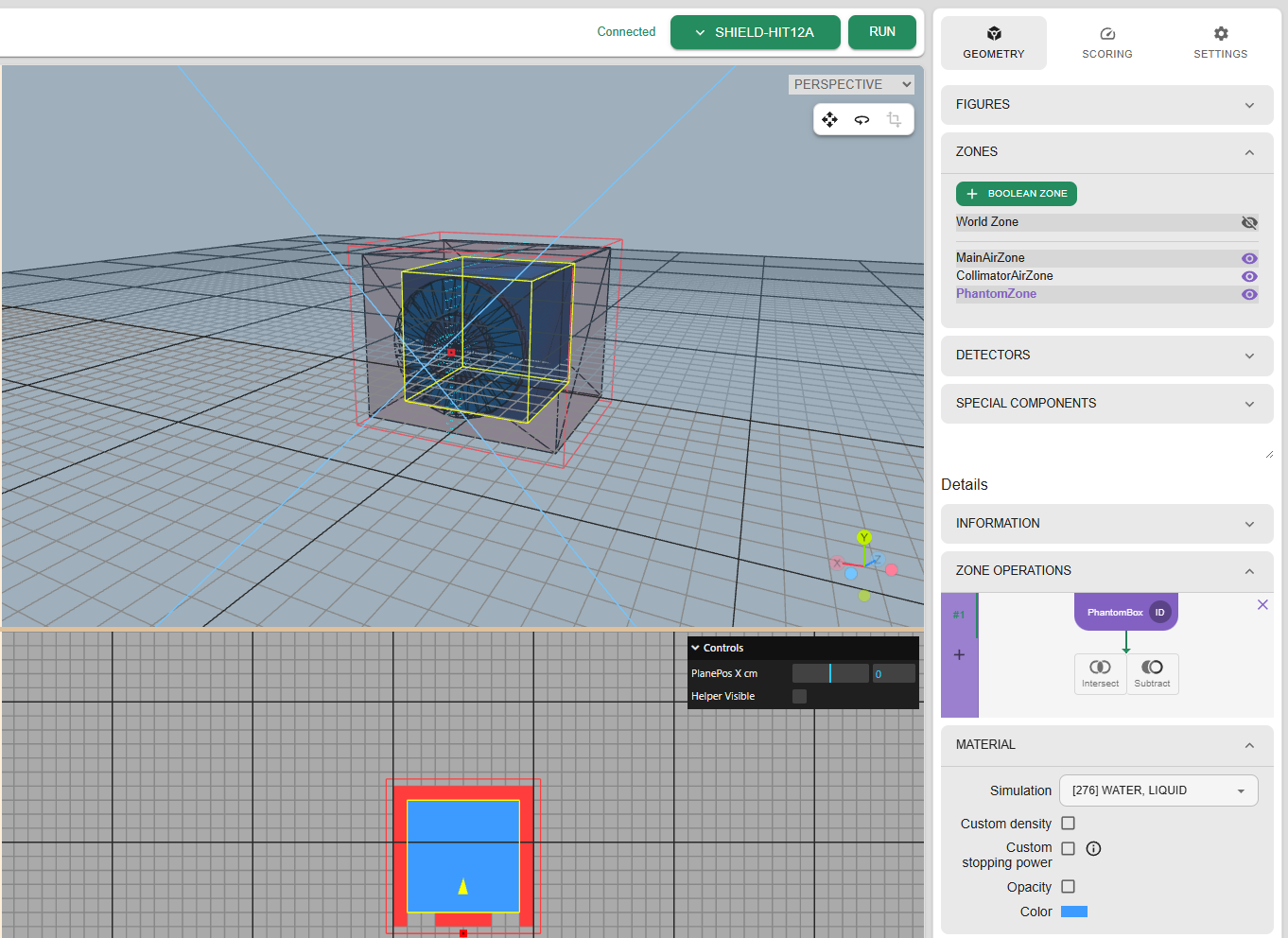

We change the color and inspect the zone in the 3-D projection window.

Alt text

There is a caveat with defining the zones by boolean operations. Each point in the space needs to belong to exactly one zone. This ensures that each point has exactly one material assigned to it. Currently the interior of the phantom box belongs to both zones: "MainZone" and "PhantomZone". Its unclear which material should be assigned to it: air or water. Therefore we modify the "MainZone" by subtracting the "PhantomBox" from it. This is done by selecting "MainZone" on list of zones and choosing "Subtract" operations:

Alt text

Then the "Not selected field" appears

Alt text

We choose "PhantomBox" figure there:

Alt text

Finally the zone operations for "MainZone" are updated:

Alt text

Collimator zone

We are going to define the collimator zone now. The collimator is a large cylinder (represented by OuterCylinder figure with radius 4cm) with a hole inside (represented by InnerCylinder figure, radius 2cm)

The zone is created by attaching OuterCylinder figure and subtracting InnerCylinder from it. We select Lead material for the zone.

Alt text

This time again the MainZone needs to be updated as the collimator zone is inside it. First we subtract the OuterCylinder from the MainZone:

Alt text

Lets note that after this operation the InnerCylinder doesn't have a material assigned, it shoult be filled with air. This can be done by adding a separate zone and assigning the InnerCylinder to it.

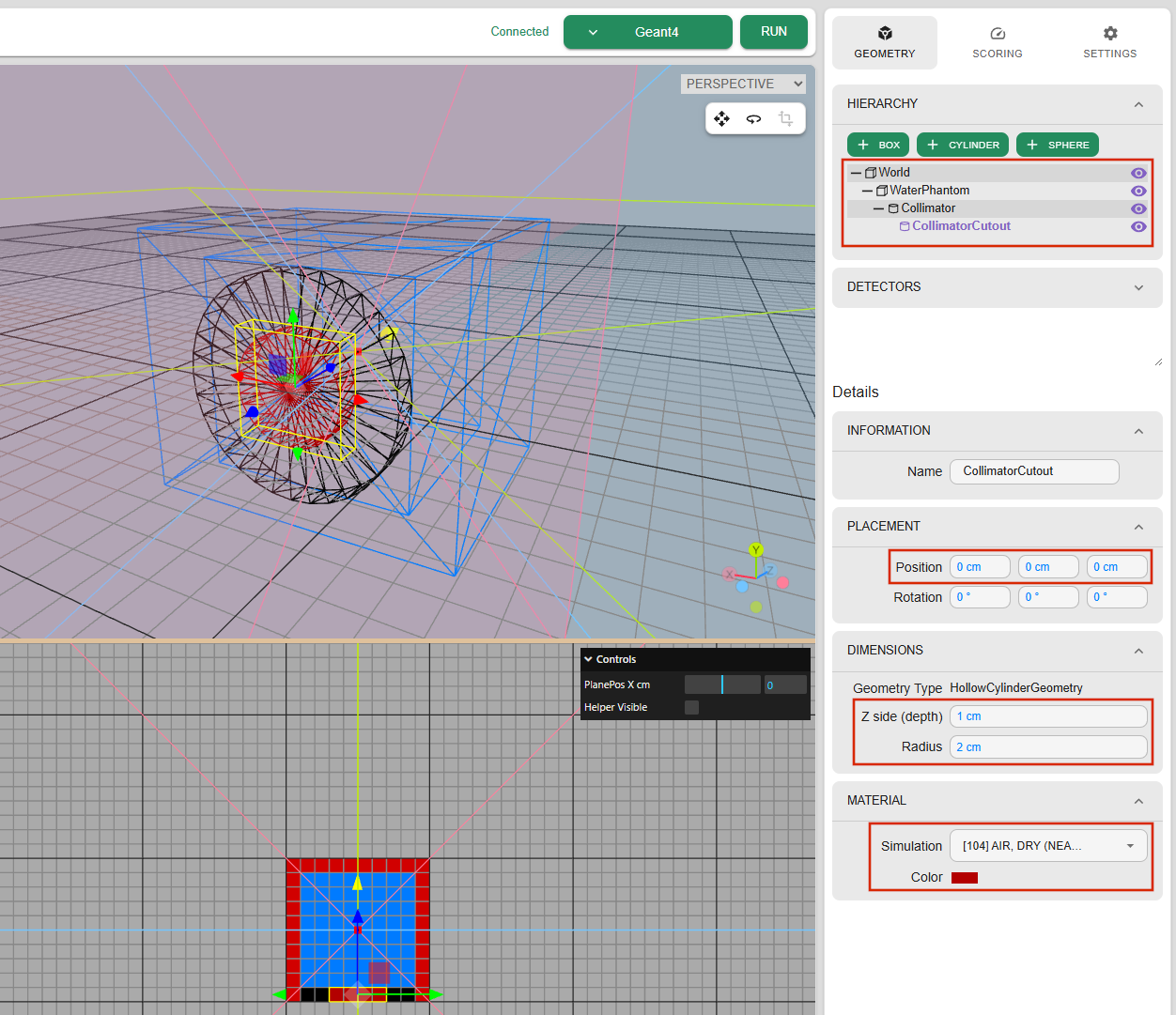

Air inside collimator

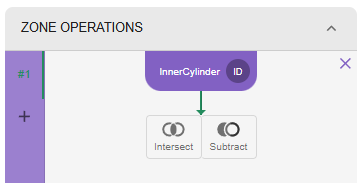

We add a new zone and assign the InnerCylinder to it.

Alt text

No other zones needs to be modified.

Finally our geometry is complete:

Alt text
