Particle source

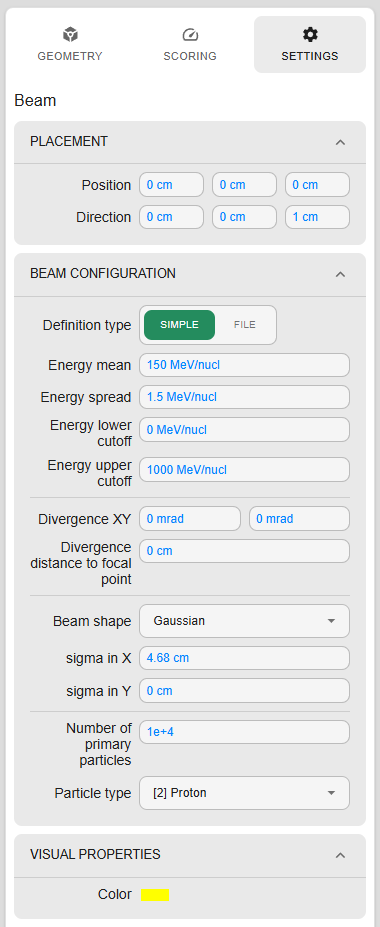

Particle source is defined in the Settings tab in the right menu of Editor view:

Alt text

User can define the place of the source, its direction and energy. Also the beam divergence and shape can be defined. Finally particle type and number of primaries can be set.

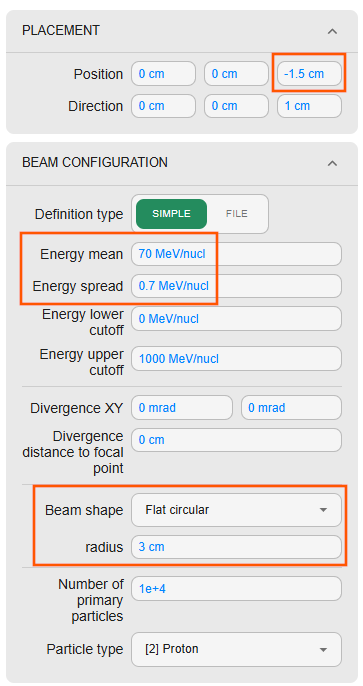

In our case we will move the beam to be located in front of the collimator by setting the beam position to (0,0,-1.5) cm. The energy is adjusted to 70 MeV with 1% of energy spread, this way we can stop the beam using 1cm of lead. Beam shape we adjust to a circular shape with 3cm radius (to be larger than the collimator hole).

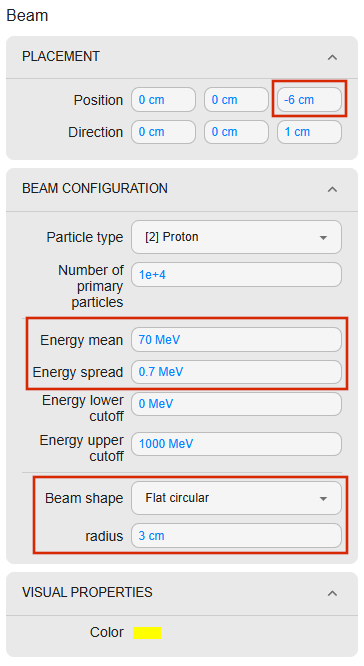

Alt text

Rest of parameters stays withing default values.

Physics settings

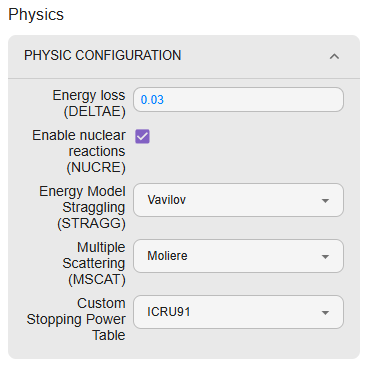

Physics settings are defined in the Physics area just below the Beam definition. User is allowed to tune the step length via relative energy loss parameter (decreasing it will reduce the step size). Also nuclear reactions can be turned on or off and scattering models can be selected.

Alt text
